Login with Cyclemate

Overview

Login with Cyclemate is OAuth 2.1 with PKCE. A rider taps a button in your app, signs in to Cyclemate (or is already signed in), approves your app on our consent screen, and your app receives an access token for that rider. Requests made with the token count against the rider’s own rate limit and are attributed to your app. An access token works on these endpoints, and nothing else:

Endpoint	What your app can do as the rider
`POST /directions/v2/`	Plan SuperSafe cycling and walking routes
`POST /multi-modal/v2/`	Plan routes with bike share and parking
`POST /explain-supersafe/`	Explain why a SuperSafe route differs from the direct one
`POST /reports/`	File a road report in the rider’s name
`GET /reports/{id}/`	Read the status of a report the rider filed

A token never reads the rider’s ride history, saved routes, profile or settings, and it cannot reach any other part of the platform. Choose this over an API key when your app acts for a signed-in rider. A key is for your own server calling the API as itself.

Register your app

Email [email protected] with:

The name of your app, as riders should see it on the consent screen.
Every redirect URI your app will use, in full. Matching is exact and there are no wildcards; see Redirect URIs.
Whether the app is public (a mobile app or a single-page web app, which cannot keep a secret) or confidential (a server-side app that can).

We reply with your client ID. A confidential app also receives a client secret, shown once; we can issue a new one if it is lost. Use separate registrations for development and production.

Redirect URIs

A redirect URI is the page or screen in your app that receives the rider after consent. We only ever send riders to a URI you registered, and the one you send in the authorize request must match a registered one exactly: scheme, host, port and path, character for character. There are no wildcards, patterns or prefix matches.

Register	Not	Why
`https://your-app.example/auth/callback`	`https://your-app.example/auth/callback/`	A trailing slash is a different path
`https://your-app.example/auth/callback`	`https://www.your-app.example/auth/callback`	A different host
`https://your-app.example:8443/auth/callback`	`https://your-app.example/auth/callback`	The port is part of the match
`http://localhost:3000/auth/callback`	`http://localhost/auth/callback`	Local development, with its port
`com.yourcompany.rides://oauth/callback`	`com.yourcompany.rides://`	A custom scheme still needs the full path

What to register:

Web apps: https:// URIs only. The one exception is http://localhost:<port>/… for local development.
Mobile apps: either your app’s custom scheme (com.yourcompany.rides://oauth/callback) or an https:// URL your app claims as a universal link or app link. Open the authorize URL in the system browser or an in-app browser tab; a web view will not hand the redirect back to your app.
Every environment you run: register one client per environment (development, staging, production) rather than one client with every URI. Each gets its own client ID and secret, so a leaked development secret never reaches production.
Several callbacks in one app (a silent-refresh page, a native and a web callback): list them all. Each authorize request names the one it wants.

What we send to it:

On approval, ?code=…&state=…. Exchange the code within 10 minutes; it works once.
On a cancel, ?error=access_denied&error_description=…&state=….
Nothing, if the request was malformed: an unregistered redirect_uri, an unknown client_id or a missing PKCE challenge answers the rider’s browser with an error straight from the authorize endpoint and never redirects anywhere, so a typo in the URI surfaces as a rider stuck on that error rather than as a request to your app.

Two URLs you do not register: the consent screen itself (https://cyclemate.club/oauth/consent) is ours, and the authorize and token endpoints are fixed (see Endpoints). To add, remove or change a redirect URI after registration, email [email protected]; the change applies to new authorize requests immediately.

The button

One look, three titles. Use Sign in where a rider has an account, Sign up where they are creating one, and Continue where you do not know. Keep the mark, the title and the colours as they are; size the button to fit your layout. It sits on light and dark pages alike.

Property	Value
Typeface	Fustat, 16px, bold (700), 0.6px letter spacing. Fustat is a free Google Font; the snippet loads it
Size	50px tall, 24px side padding, 8px corner radius
Colours	White background, black title, 1px border at 15% black. Hover `#F0F0F0` with the border at 20% black. Pressed `#E0E0E0` at 97% scale
Mark	The Cyclemate icon at 20px with 4px rounded corners, 8px before the title. Load it from `https://docs.cyclemate.club/images/brand/cyclemate-icon.png` or ship a copy

Build the authorize URL when the rider taps, so each attempt gets a fresh code_challenge and state.

<link rel="stylesheet" href="https://fonts.googleapis.com/css2?family=Fustat:wght@700&display=swap">
<style>
  .login-with-cyclemate {
    display: inline-flex; align-items: center; justify-content: center; gap: 8px;
    min-height: 50px; padding: 0 24px; border-radius: 8px;
    border: 1px solid rgba(0, 0, 0, 0.15); background: #FFFFFF; color: #000000;
    font: 700 16px/1.2 Fustat, system-ui, sans-serif; letter-spacing: 0.6px;
    text-decoration: none; cursor: pointer;
    transition: background 120ms ease, border-color 120ms ease, transform 120ms ease;
  }
  .login-with-cyclemate:hover { background: #F0F0F0; border-color: rgba(0, 0, 0, 0.2); }
  .login-with-cyclemate:active { background: #E0E0E0; transform: scale(0.97); }
  .login-with-cyclemate img { width: 20px; height: 20px; border-radius: 4px; display: block; }
</style>

<a id="login-with-cyclemate" class="login-with-cyclemate" href="#">
  <img src="https://docs.cyclemate.club/images/brand/cyclemate-icon.png" alt="">
  Sign in with Cyclemate
</a>

<script type="module">
  const base64url = (bytes) =>
    btoa(String.fromCharCode(...bytes)).replace(/\+/g, '-').replace(/\//g, '_').replace(/=+$/, '')

  async function authorizeUrl() {
    const verifier = base64url(crypto.getRandomValues(new Uint8Array(32)))
    const digest = await crypto.subtle.digest('SHA-256', new TextEncoder().encode(verifier))
    const state = base64url(crypto.getRandomValues(new Uint8Array(16)))
    sessionStorage.setItem('cyclemate_code_verifier', verifier)
    sessionStorage.setItem('cyclemate_state', state)
    const params = new URLSearchParams({
      response_type: 'code',
      client_id: 'YOUR_CLIENT_ID',
      redirect_uri: 'https://your-app.example/auth/callback',
      scope: 'openid email',
      state,
      code_challenge: base64url(new Uint8Array(digest)),
      code_challenge_method: 'S256',
    })
    return 'https://api.cyclemate.club/auth/v1/oauth/authorize?' + params
  }

  document.getElementById('login-with-cyclemate').addEventListener('click', async (e) => {
    e.preventDefault()
    window.location.assign(await authorizeUrl())
  })
</script>

import { useCallback, useState } from 'react'

const base64url = (bytes) =>
  btoa(String.fromCharCode(...bytes)).replace(/\+/g, '-').replace(/\//g, '_').replace(/=+$/, '')

async function authorizeUrl({ clientId, redirectUri, scope = 'openid email' }) {
  const verifier = base64url(crypto.getRandomValues(new Uint8Array(32)))
  const digest = await crypto.subtle.digest('SHA-256', new TextEncoder().encode(verifier))
  const state = base64url(crypto.getRandomValues(new Uint8Array(16)))
  sessionStorage.setItem('cyclemate_code_verifier', verifier)
  sessionStorage.setItem('cyclemate_state', state)
  const params = new URLSearchParams({
    response_type: 'code',
    client_id: clientId,
    redirect_uri: redirectUri,
    scope,
    state,
    code_challenge: base64url(new Uint8Array(digest)),
    code_challenge_method: 'S256',
  })
  return `https://api.cyclemate.club/auth/v1/oauth/authorize?${params}`
}

const ICON = 'https://docs.cyclemate.club/images/brand/cyclemate-icon.png'
const surface = { base: '#FFFFFF', hover: '#F0F0F0', pressed: '#E0E0E0' }
const border = { base: 'rgba(0, 0, 0, 0.15)', hover: 'rgba(0, 0, 0, 0.2)' }

export function LoginWithCyclemate({ clientId, redirectUri, title = 'Sign in with Cyclemate' }) {
  const [hover, setHover] = useState(false)
  const [pressed, setPressed] = useState(false)
  const onClick = useCallback(async () => {
    window.location.assign(await authorizeUrl({ clientId, redirectUri }))
  }, [clientId, redirectUri])

  return (
    <button
      type="button"
      onClick={onClick}
      onMouseEnter={() => setHover(true)}
      onMouseLeave={() => { setHover(false); setPressed(false) }}
      onMouseDown={() => setPressed(true)}
      onMouseUp={() => setPressed(false)}
      style={{
        display: 'inline-flex', alignItems: 'center', justifyContent: 'center', gap: 8,
        minHeight: 50, padding: '0 24px', borderRadius: 8,
        border: `1px solid ${hover ? border.hover : border.base}`,
        background: pressed ? surface.pressed : hover ? surface.hover : surface.base,
        color: '#000000',
        font: '700 16px/1.2 Fustat, system-ui, sans-serif', letterSpacing: 0.6,
        cursor: 'pointer',
        transform: pressed ? 'scale(0.97)' : 'none',
        transition: 'background 120ms ease, border-color 120ms ease, transform 120ms ease',
      }}
    >
      <img src={ICON} width="20" height="20" alt="" style={{ borderRadius: 4, display: 'block' }} />
      {title}
    </button>
  )
}

// On your redirect URI: check the state, then exchange the code (public app).
const params = new URLSearchParams(window.location.search)
if (params.get('state') !== sessionStorage.getItem('cyclemate_state')) {
  throw new Error('state mismatch')
}
if (params.get('error')) {
  // 'access_denied' when the rider cancelled; show your signed-out state.
}

const response = await fetch('https://api.cyclemate.club/auth/v1/oauth/token', {
  method: 'POST',
  headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
  body: new URLSearchParams({
    grant_type: 'authorization_code',
    code: params.get('code'),
    client_id: 'YOUR_CLIENT_ID',
    redirect_uri: 'https://your-app.example/auth/callback',
    code_verifier: sessionStorage.getItem('cyclemate_code_verifier'),
  }),
})
const tokens = await response.json()
// tokens.access_token, tokens.refresh_token, tokens.expires_in

Ready-made buttons

If you would rather not build the button, download one. Each file is the button above with the title already drawn, so there is nothing to load. The SVG scales to any size; the PNGs are 50px tall at 1x.

Preview	SVG	PNG

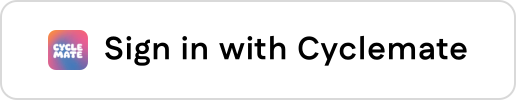

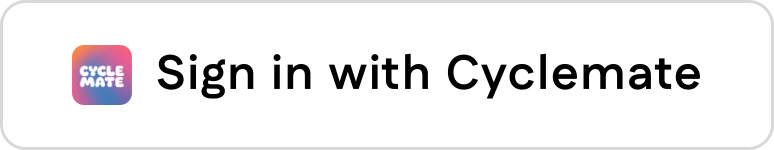

	sign-in.svg	1x · 2x · 3x

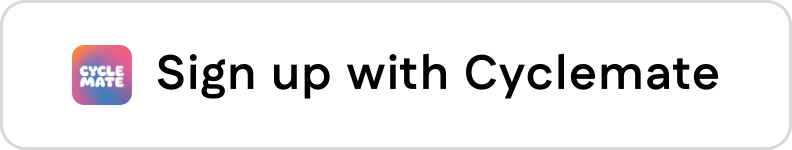

	sign-up.svg	1x · 2x · 3x

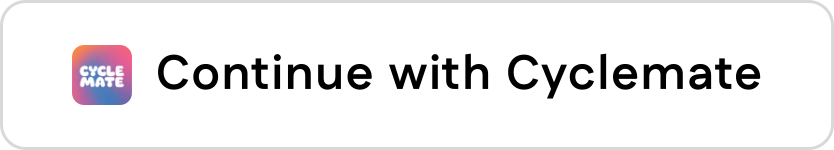

	continue.svg	1x · 2x · 3x

Scale the image proportionally, keep at least 8px clear around it, and do not recolour, stretch or add a shadow. Wrap it in a link or button that opens the authorize URL, as in the snippets above.

The flow

Send the rider to the authorize endpoint

Open https://api.cyclemate.club/auth/v1/oauth/authorize in the rider’s browser with these query parameters.

Parameter	Value
`response_type`	`code`
`client_id`	Your client ID
`redirect_uri`	One of your registered redirect URIs, character for character
`code_challenge`	Base64url of the SHA-256 of a random `code_verifier` (43 to 128 characters)
`code_challenge_method`	`S256`
`state`	A random string you store and check on return
`scope`	Space-separated scopes. Defaults to `email`

On a phone, open it in the system browser or an in-app browser tab, not a web view. A rider with the Cyclemate app installed may be taken into the app for the consent step; the web page handles it otherwise.

The rider signs in and approves your app

We show a consent screen naming your app and what it will be able to do. A rider who is not signed in signs in first (Google, Apple or email), then returns to the same consent screen.

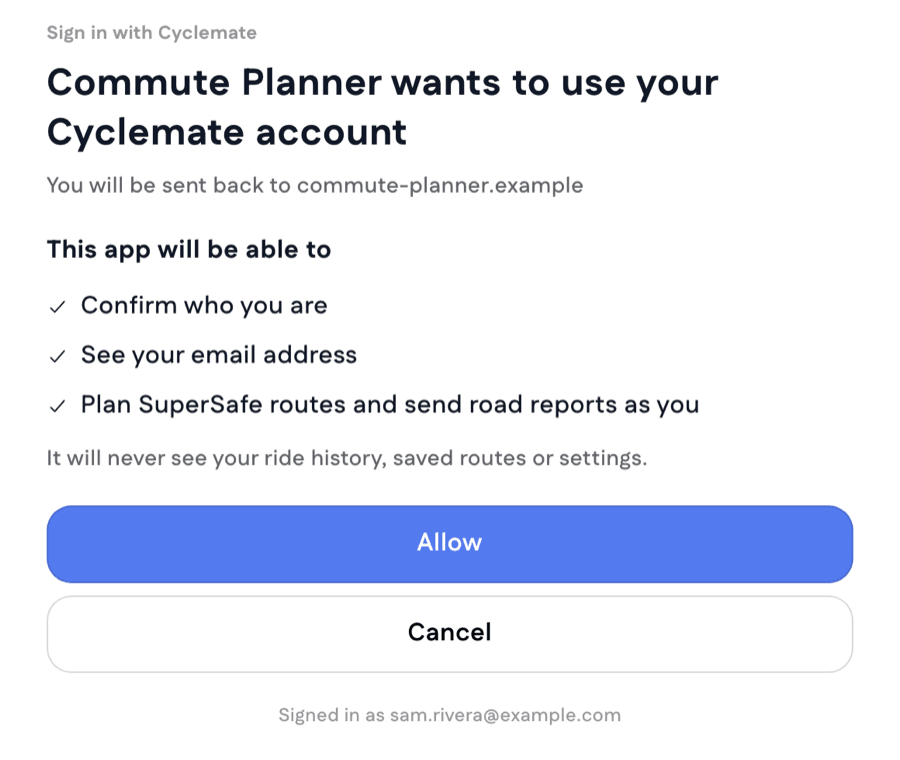

The Sign in with Cyclemate consent screen: Commute Planner wants to use your Cyclemate account, the three things the app will be able to do, an Allow button and a Cancel button — The consent screen, here for an app registered as Commute Planner

The request is valid for 3 minutes. If the rider takes longer, the screen says the request expired and they go back to your app to try again.

Receive the code

On approval the rider lands on your redirect_uri with code and state:

https://your-app.example/auth/callback?code=…&state=…

Check that state matches what you stored. The code is single-use and valid for 10 minutes.If the rider cancels, the same URI receives error=access_denied and an error_description, plus your state.

Exchange the code for tokens

POST https://api.cyclemate.club/auth/v1/oauth/token, form-encoded.

curl -X POST https://api.cyclemate.club/auth/v1/oauth/token \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d grant_type=authorization_code \
  -d code=THE_CODE \
  -d client_id=YOUR_CLIENT_ID \
  -d redirect_uri=https://your-app.example/auth/callback \
  -d code_verifier=THE_CODE_VERIFIER

curl -X POST https://api.cyclemate.club/auth/v1/oauth/token \
  -u "YOUR_CLIENT_ID:YOUR_CLIENT_SECRET" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d grant_type=authorization_code \
  -d code=THE_CODE \
  -d redirect_uri=https://your-app.example/auth/callback \
  -d code_verifier=THE_CODE_VERIFIER

The response:

{
  "access_token": "eyJhbGc…",
  "token_type": "bearer",
  "expires_in": 3600,
  "refresh_token": "MXff…",
  "scope": "openid email",
  "id_token": "eyJhbGc…"
}

id_token is present only when you requested the openid scope.

Call the API as the rider

Send the access token as a bearer token. No API key is needed alongside it.

curl -X POST https://api.cyclemate.club/directions/v2/ \
  -H "Authorization: Bearer ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"coordinates": [[-0.1276, 51.5074], [-0.0877, 51.5257]], "profile": "cycling"}'

A browser app can call the five endpoints directly: they accept requests from any origin.

Refresh

Access tokens last one hour. Refresh before expires_in runs out, or when a call returns 401.

curl -X POST https://api.cyclemate.club/auth/v1/oauth/token \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d grant_type=refresh_token \
  -d refresh_token=THE_REFRESH_TOKEN \
  -d client_id=YOUR_CLIENT_ID

A confidential app authenticates with -u "YOUR_CLIENT_ID:YOUR_CLIENT_SECRET" instead of sending client_id. Refresh tokens rotate: store the new one whenever the response carries it.

Endpoints

Endpoint	URL
Authorize	`https://api.cyclemate.club/auth/v1/oauth/authorize`
Token	`https://api.cyclemate.club/auth/v1/oauth/token`
Signing keys (JWKS)	`https://api.cyclemate.club/auth/v1/.well-known/jwks.json`

Access tokens are JWTs signed with ES256. We verify every token on our side, so your app does not need to validate them; the JWKS endpoint is there if you want to check an id_token yourself.

Scopes

Scopes only affect what the id_token and the rider’s identity carry. They never widen what the access token can do on the API.

Scope	Claims
`openid`	Adds an `id_token` to the token response
`email`	The rider’s email address and whether it is verified. The default
`profile`	The rider’s name and profile photo
`phone`	The rider’s phone number, where one is on the account

Error responses

Authorize

Problems with the request itself (an unknown client_id, a redirect URI that is not registered, a missing PKCE challenge) are shown to the rider as an error page and never reach your redirect URI. A rider who cancels returns to your redirect URI with error=access_denied.

Token

{
  "error": "invalid_grant",
  "error_description": "The authorization code has expired or was already used"
}

invalid_grant also covers a code_verifier that does not match the challenge, and a refresh token that was revoked or already rotated. invalid_client means the client ID or secret was wrong.

API

A valid access token sent to an endpoint outside the five above answers 401 with { "error": "OAuth access tokens are not accepted by this endpoint" }, and the rest of the platform answers 403. An expired token answers 401 on every endpoint: refresh and retry.

Good to know

Rate limits apply per rider, in a bucket of their own for your app, so one busy integration never slows a rider’s own use of Cyclemate.
A report filed with a token is the rider’s report. It appears in their app under My reports, and GET /reports/{id}/ answers only for reports that rider filed.
To revoke an app’s access for every rider, or to rotate a secret, email [email protected]. Refresh tokens stop working at once; access tokens expire within the hour.

Getting started

Routing

Contributions

Login with Cyclemate

Overview

Register your app

Redirect URIs

The button

Ready-made buttons

The flow

Endpoints

Scopes

Error responses

Authorize

Token

API

Good to know

​Overview

​Register your app

​Redirect URIs

​The button

​Ready-made buttons

​The flow

​Endpoints

​Scopes

​Error responses

​Authorize

​Token

​API

​Good to know

Overview

Register your app

Redirect URIs

The button

Ready-made buttons

The flow

Endpoints

Scopes

Error responses

Authorize

Token

API

Good to know
